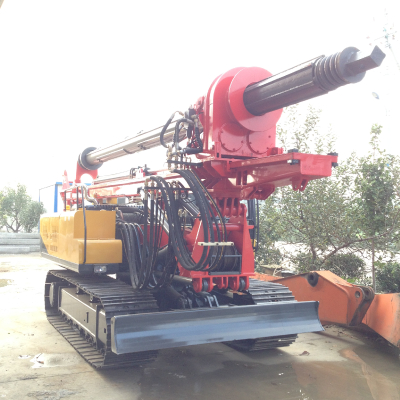

Festive red 20 meter machine lock rod rotary drilling rig

Festive red 20 meter machine lock rod rotary drilling rig

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: Chinese Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-12-27
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Tengzhou
  • Brand Name:  wuyue
  • Model Number:  WYR70-20

technical parameter

Parameter \ model WYR50-20 WYR70-20 WYR70-25 WYR50-15

Working status (m 8*2.8*11.5) 5.9*2.35*10.5 6.7*2.55*12 7.1*2.5*12

Transport status (long * wide * high) 8.2*2.35*3.15 10*2.55*3.15 10*2.55*3.28 10*2.8*3.55 M

The weight of the whole machine t 17181924

Max drilling diameter mm 1200120012001200

Maximum drilling depth m 15202025

Yuchai Yuchai Cummins Cummins Engine brand

Model 4A115Z 6BT5.9-C150 6BT5.9-C150 4A115Z

Rated power 85/2200 85/2200 113/2500 113/2500 kw/rpm

Hydraulic flow maximum working pressure main pump Mpa 30303030

Auxiliary pump Mpa \ \ \ \

Max flow 2*140 2*140 L/min 2*170 2*170

Auxiliary pump L/min \ \ \ \

Power head maximum torque Kn.m 50507070

Speed 5-90 5-90 5-85 5-85 rpm

Maximum soil throwing speed rpm 90908585

Pressure system maximum plus pressure Kn 50507070

Maximum lifting force Kn 60608080

Max stroke mm 2800280028003000

The main hoist of maximum lifting force of 10121515 Kn

Maximum hoisting speed m/min 72727171

Vice winch maximum lifting force Kn 15154545

Maximum hoisting speed m/min 60607070

Drilling mast about 5 5 DEG angle 5 5

Front dip angle 8888

The maximum running speed of the chassis km/h 4433

Maximum climb slope degree 35353530

Track width mm 500500600600

Track chain segment mm 154154190190

Chassis length mm 3600370038004200

Average ground pressure kPa 68.57785 66.3

D273*60.5*3 D273*8.2*3 D273 D325*7.8*4 lock type drill machine drill pipe standard


  • Place of Origin:  Tengzhou
  • Brand Name:  wuyue
  • Model Number:  WYR70-20
